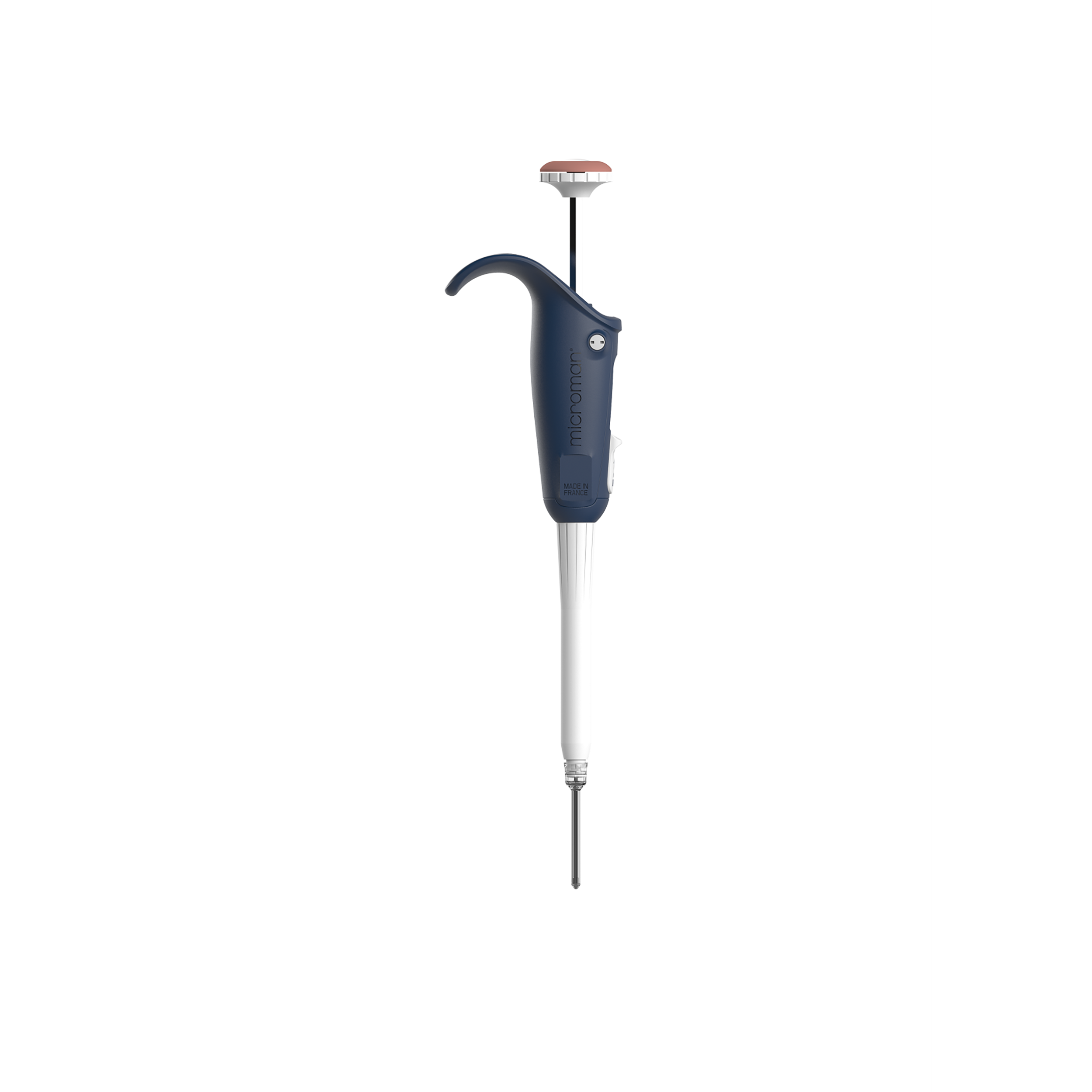

MICROMAN E M100E, 10-100 µL

The ergonomically designed MICROMAN® E positive-displacement pipettes, along with disposable capillary piston (CP) tips, provide the highest precision when pipetting viscous, non-aqueous liquids such as oils, blood, glycerol, and more while protecting the pipette from contamination.

MICROMAN E is available in six models covering a volume range of 1 to 1000 µL.



Reliable Results Even with Non-Aqueous Liquids
Do you experience the following issues when pipetting with air displacement pipettes?

Viscous solutions: difficult to aspirate and stick to pipette tips
Volatile solutions: leaks created by differences between solvent vapor pressure and the air pressure within the pipette
Cold liquids: excess volume delivery
Hot liquids: under-delivered volumes
Tackle these common challenges, increase precision, and maximize repeatability with MICROMAN E.



Overall Protection
Contaminated, corrosive, or radioactive samples can generate aerosols that can cross-contaminate or damage the pipette. The disposable piston within the capillary piston (CP) tip is in direct contact with the liquid, preventing contamination and protecting the sample, the user, and the pipette.



Designed with Comfort in Mind
The unique QuickSnap system secures the disposable CP in one easy motion, fitting a CP as simply and reproducibly as a standard pipette. Easily eject the CP by pressing the push button and avoiding any contact with the disposable CP. The volume-control switch allows for easy volume adjustment and minimizes the risk of accidentally changing the volume during pipetting tasks.


SKU FD10004
Range MICROMAN E
Model M100E
Adjustable or Fixed Volume Adjustable Volume
Nominal Volume 100 µL
Systematic Error (μL) 10 µL ± 0,50|50 µL ± 0,75|100 µL ± 1,00
Random Error (μL) 10 µL ≤ 0,20|50 µL ≤ 0,30|100 µL ≤ 0,40
Systematic Error (%) 10 % ± 3,0|50 % ± 1,0|100 % ± 0,8
Random Error (%CV) 10 % ≤ 2,00|50 % ≤ 0,60|100 % ≤ 0,40
Type Manual Positive Displacement
Volume Range 10-100 µL
Connected No
Number of Channels 1
Volume 100 µL
Calibrated Yes
Color Code Salmon
Compatible Tips CP100, CP100ST
Grip Type Ergonomic
Programmability No
Company Compliance ISO 9001, ISO 14001, ISO 13485

Pack Size Unit Each
Packaging Dimensions 32 x 11 x 4 cm
Packaging Material Carboard
Stackable Yes
Total Quantity 1

Disposable Reusable
Material Polyester, PVDF, PP, PBT, PC, SS, BE Alloy

Product Dimensions (L x W x H) 20.39 x 5.86 x 3.8 cm
Product Length (Metric) 20.39 cm
Product Weight (Metric) 0.06 g
Product Weight (Imperial) 0.13 lb
